Re-alignment in Cringleford

During heavy rainfall water overflowed from this corner union

During rain, water was reported to overflow from the corner union here on the left. Here the fall was in the wrong direction.

Corner union to the left confirmed low #1a
Vacuumed and levels checked #2

After initial vacuuming of the gutters we checked the levels to ascertain whether or not the fall was correct and within tolerance...

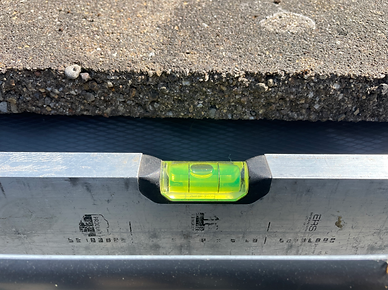

Fall could be reduced #3
Levels checked #4

There was a good degree of fall towards the corner from the left side...

...however, and possibly due to the large overhang of the eaves meant that the roofline wasn't level...

...leaving this amount of fall may result in having an excessive distance between the tiles and gutter at the outlet & swan-neck of the downpipe...

Again, fall could be reduced #5

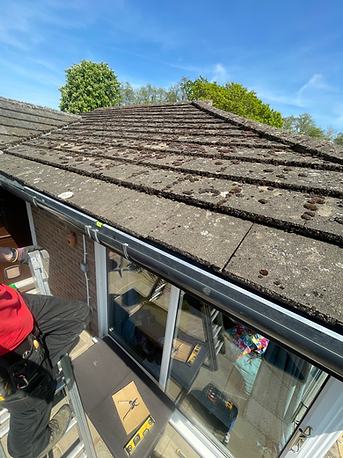

Small alterations made towards the corner #6

We removed the guttering and altered the positioning of the fascia brackets, reducing the fall to the smallest amount necessary up to the corner...

Re-alignment - fall confirmed #7

...then continued the repositioning of the fascia brackets from the corner, creating a gradual fall towards the downpipe.

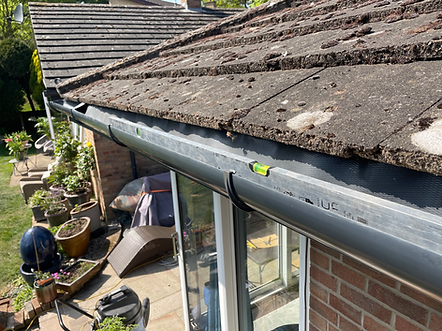

Alterations made from the corner towards the downpipe #8
Detached swan-neck - now secured & alterations made #10

To finish, we performed a water test to confirm the flow of water towards the outlet and through the downpipe.

If you have guttering with issues check out our guide here

 Gutter Maintenance in Norwich: Repair or Replacement — What’s Right for Your Home?

Correct re-alignment confirmed #9
